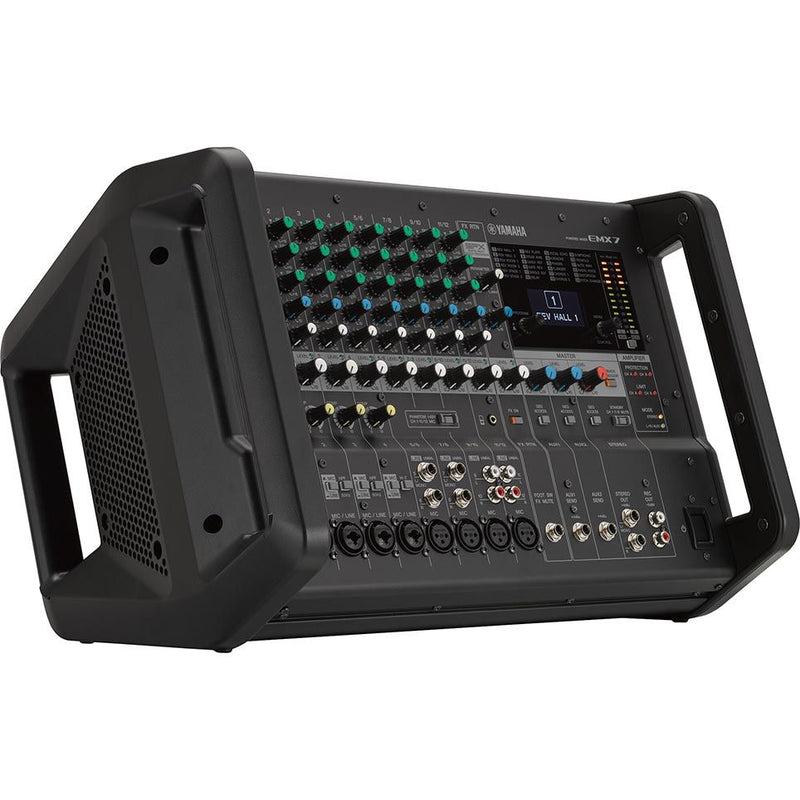

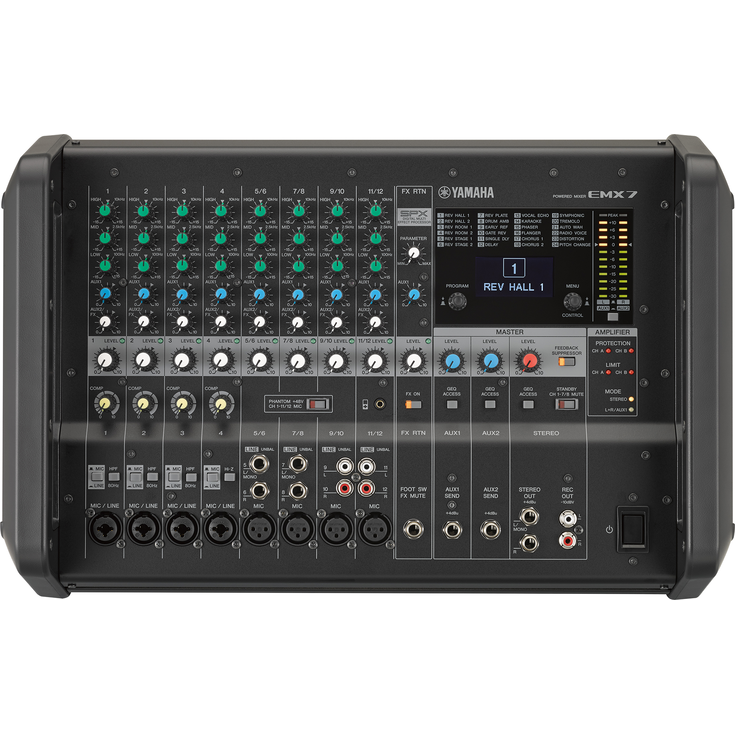

The Yamaha EMX7 Powered Mixer is a professional all-in-one live sound solution combining a 12-channel mixer with a high-powered built-in amplifier. Designed for bands, DJs, schools, houses of worship, and live venues, it delivers powerful performance, flexible routing, and Yamaha’s renowned reliability in a rugged, portable unit.
With a total amplifier output of up to 1420W, the EMX7 can drive passive speakers directly, eliminating the need for a separate power amp. It features high-quality Yamaha preamps, onboard digital effects, EQ control, feedback suppression, and intuitive one-knob operation for fast setup and clean sound.
Features
-
Integrated high-power stereo Class-D amplifier (up to 1420W total)
- 12-channel mixer (8 mono mic/line + 4 stereo inputs)
- High-impedance (Hi-Z) input for guitar or bass
- 3-band EQ on each channel for precise tone shaping
- One-knob compressor on channels 1–4 for smooth dynamics
-
Built-in SPX digital effects processor (24 effects)
- Onboard feedback suppressor for reduced unwanted noise
- Flexible routing for main and monitor setups
- Dual amplifier design for stereo or main/monitor configurations
- Rugged metal chassis with integrated handles for portability
- Phantom power support for condenser microphones
This Powered Mixer pairs well with a pair of Yamaha CBR15 Passive Speakers
Specifications
| Feature |
Details |
| Brand |
Yamaha |
| Model |
EMX7 |
| Product Type |
Powered Mixer |
| Channels |
12 (8 mono + 4 stereo) |
| Amplifier Power |
Up to 2 × 710W @ 4Ω / 2 × 500W @ 8Ω |
| Total Power Output |
Up to 1420W (combined) |
| EQ |
3-band per channel + master EQ |
| Effects |
24 SPX digital effects |
| Inputs |
Mic/Line, stereo line, Hi-Z guitar input |
| Outputs |
Speaker outputs (powered), line outs, AUX sends |
| Phantom Power |
Yes (+48V) |
| Construction |
Heavy-duty metal chassis |
| Colour |
Black |
