Eikon EKJH Wireless Headset Microphone System

Name: Eikon EKJH Wireless Headset Microphone System
Brand: Eikon
SKU: EKJH
Price: 175.0 AUD
Availability: InStock

Save $4.00

$179.00

$179.00 - $179.00

$179.00

$175.00

$175.00 - $175.00

$175.00

loading inventory data..

We offer Rentals with Studio 19

If you need us assistance, get in contact with us!

EIKON J&H Wireless Headset system

The EKJ&H is a quartz-controlled UHF headset wireless microphone system that provides reliable, high-quality signal transmission.

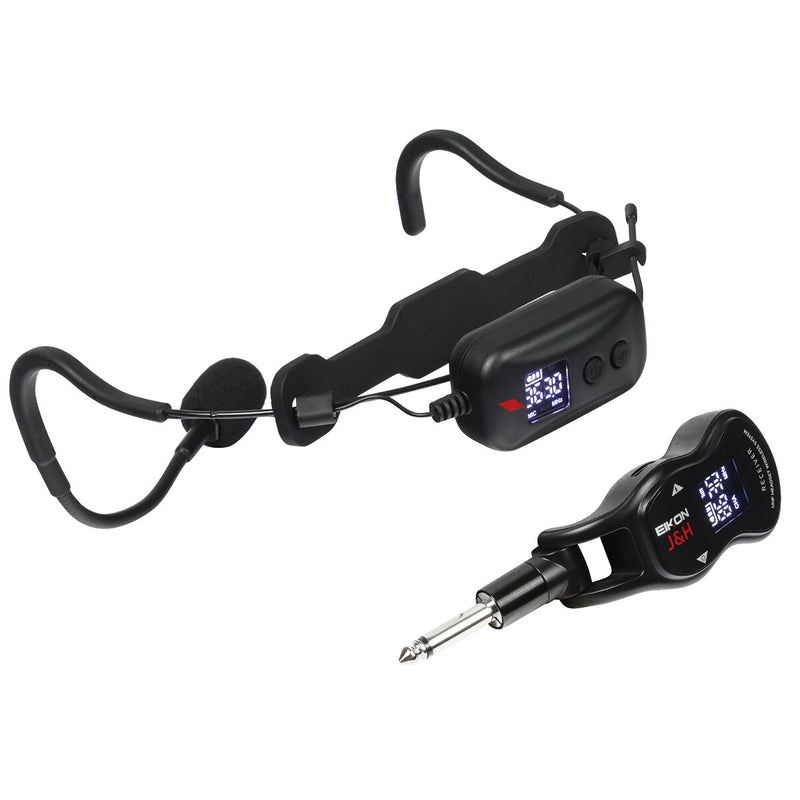

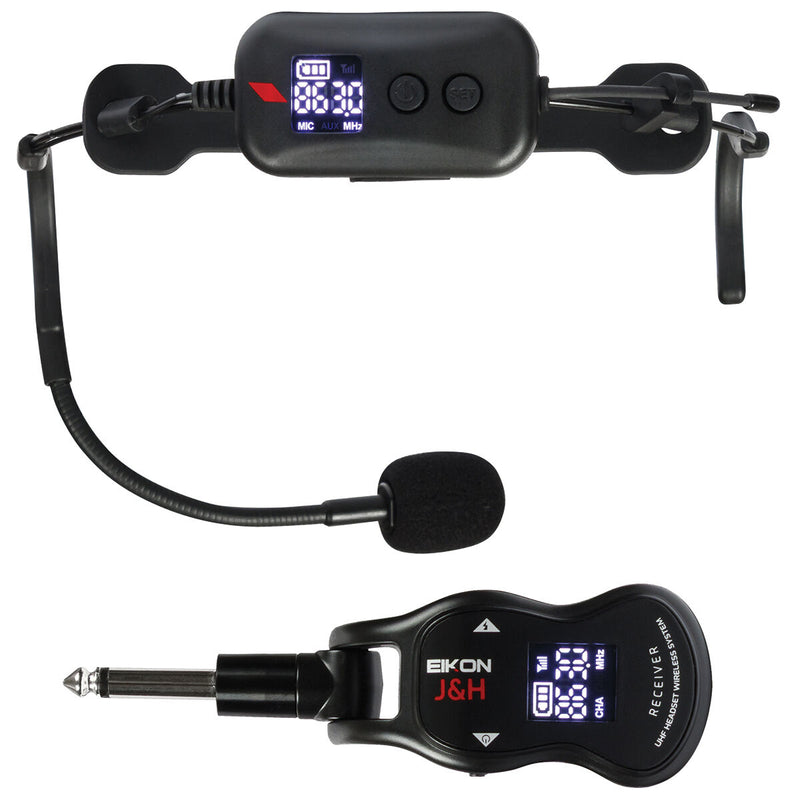

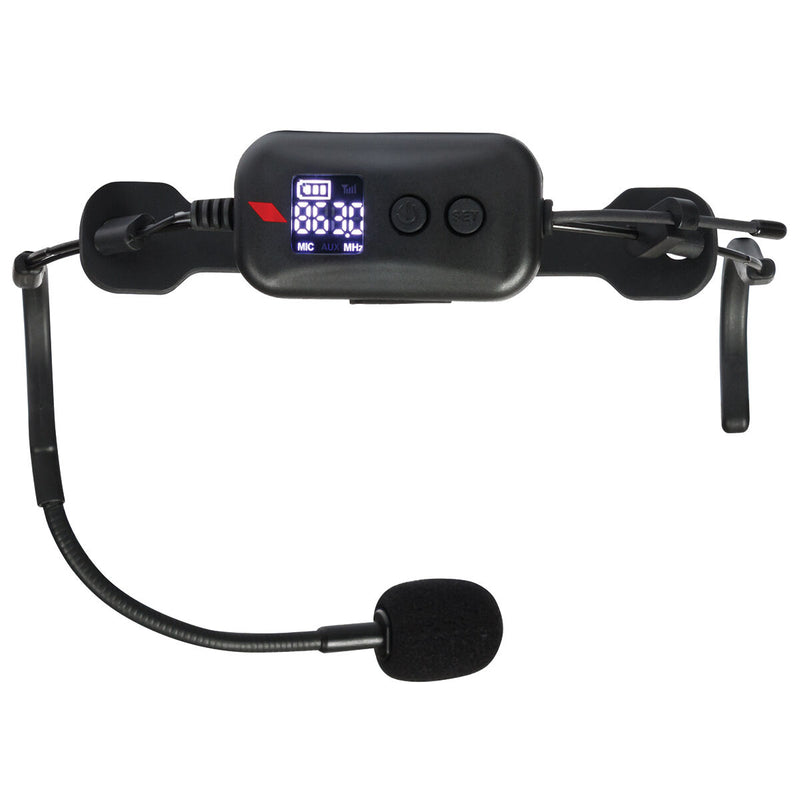

The EKJ&H comes with 3 units: the EKJ&H headset transmitter, the EKJ&H compact "connector-style" receiver, and a USB to USB-C charging cable.

50 frequency channels are available in 512 - 541 MHz, allowing the system to be used with other wireless equipment simultaneously.

Download Manual HERE

RF Channels	50 frequency presets
RF Frequency Band	UHF: 512 - 541 MHz
RF Frequency Stability	±0,002%
RF Oscillation Mode	Quartz locked
RF Modulation Type	Wideband FM Stereo
RF Output Power	10mW
Sub-harmonic	< 40 dB
Operating current	130 mA
Operating Time	3 to 5 hrs (depending on use conditions)
Operating Power Supply	3.7 V / 500 mA - built-in Lithium battery
Charging mode	USB charging 5V – type USB-C connector
Charging time	4 hours
Weight	0.50 Kg

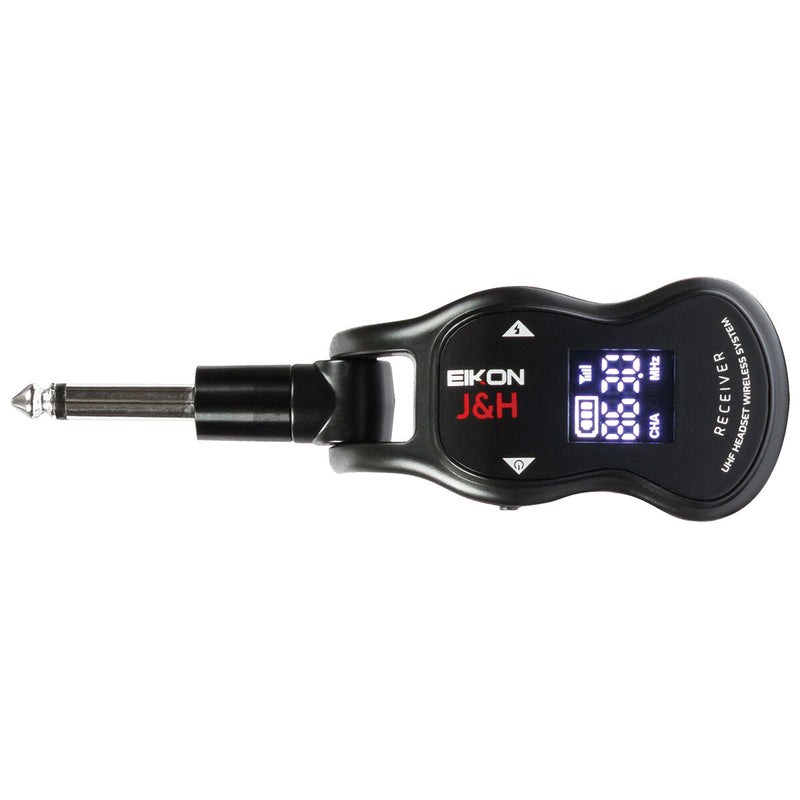

EKJ&H –UHF PLL Receiver

RF Channels	50 frequency presets
RF Frequency Band	UHF: 512 - 541 MHz
RF Frequency Stability	±0,005%
RF Oscillation Mode	Quartz locked
RF Modulation Type	Wideband FM Stereo
RF Receiving Sensitivity	< -95 dBm
RF Receiving range	20 meters depending on used band conditions
Audio dynamic range	106 dBm
THD Distortion	< 0.5%
S/N Ratio	> 90 dBA
Audio output connector	6.3 mm Mono Jack
Output Power Max (continuous)	400 mW
Operating current	80 mA
Operating Time	5 hours
Operating Power Supply	3.7 V / 500 mA - built-in Lithium battery
Charging mode	USB charging 5V – type USB mini connector
Charging time	3 hours
Weight	0.05 Kg
